The

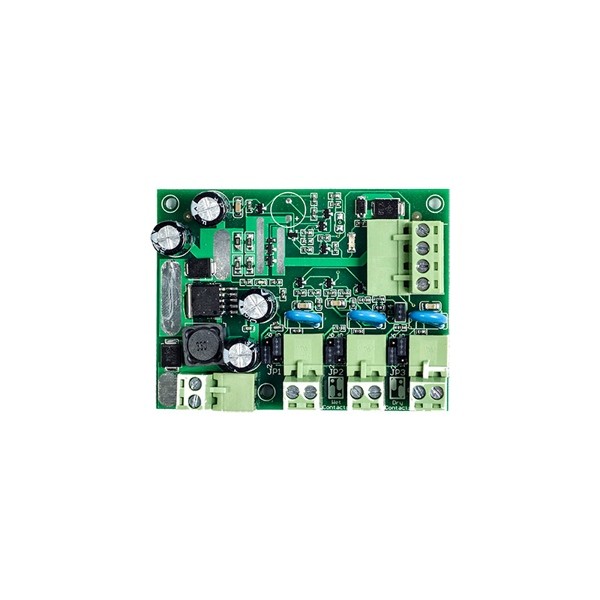

Perimeter Light Control Module works in conjunction with a 12VDC power supply,
such as the Nemtek 2Amp Power Pack. This Control Module converts the 12VDC
input power to 24VDC output power to drive the LED lights and also controls how
the lights are turned off and on via inputs on the module.
Features:
- Lights can be triggered in three
ways:
- Energizer alarm trigger
- Remote on and off
- Day/night switch
- Wet/dry contacts are
configurable on the power-supply trigger module
- Low-voltage cabling is run along
the fence line to provide power to the lights
Specifications:
|
Input
voltage |
12VDC |
|
Maximum
input current consumption |
2A |
|
Output
voltage |
25.5V |
|
Maximum
output current |
800mA* at
25°C |
|
Maximum
number of connected light modules |
20 sets of
lights (40 in total) |
|
Maximum
trigger input current consumption |
1.5mA** |
|
Trigger
input voltage |
10 –
30VDC** |
|
Number of
trigger inputs |
3
(configurable as wet or dry contacts) |
|
Operating
temperature |
-20° to
50°C |
|
Mounting |
3 x 3mm
holes to mount inside Nemtek Power Pack 2Amp |
|
|
|
|
Stock Code |
Description |
|
SR-FL/24PCB |
Perimeter
Light Control Module |
