Inhouse product

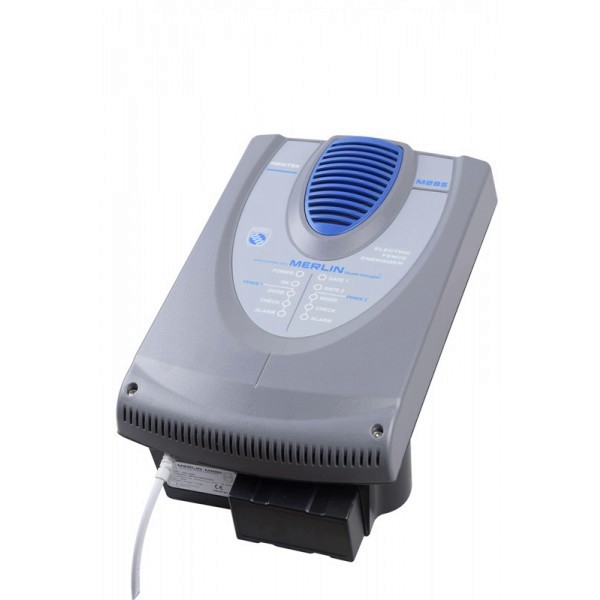

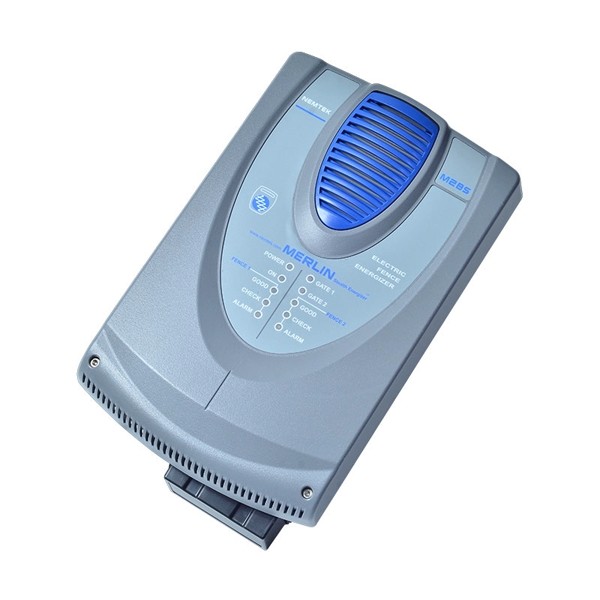

The Merlin
Stealth Dual Zone energizer is a powerful range that can be used for
residential to high-end security needs and is a cost-effective solution where
more than one zone is required. Separation of the fence into two zones allows
easy identification of the zone affected by fence faults or tampering. Smart
design allows the maximum amount of energy to be transferred to the zone that
needs it, yet the combined energy of the two zones will not exceed the legal
maximum permitted. These energizers can be controlled by a tag and/or a keypad
and can be programmed to offer customised solutions.
Features:
Specifications:
Enclosure
size |
L370
x W232 x D145mm |
Weight |
4.8kg
excluding battery (7AH) |
IP
rating |
IPx4 |
Operating
temperature |
-10°C
to 50°C |
Operating
humidity |
<
80% non-condensing |
Electrical
supply voltage |
240V |
Typical
power consumption |
27VA
(normal operating conditions) |
Standby
Time |
6hrs
(fully charged battery) |
Energy
output |
7.6
Joule (500 Ohms load) |
Open
circuit voltage |
9300V |
Stock Code |
Description |
E-M28S/V1 |
Merlin Stealth M28S Energizer |
