Inhouse product
The

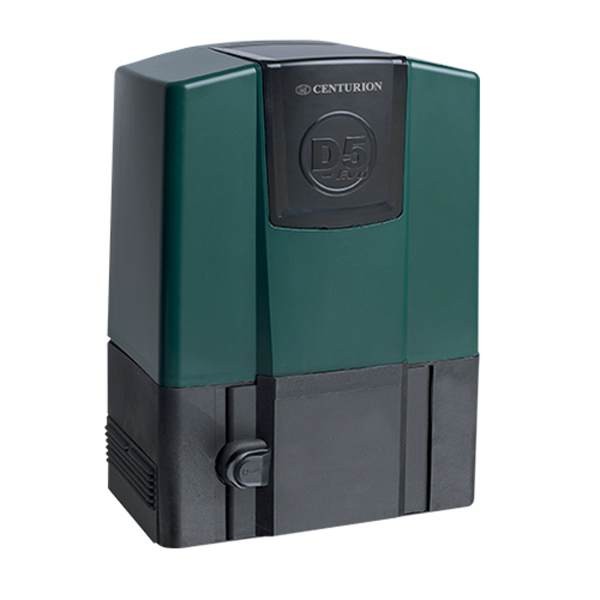

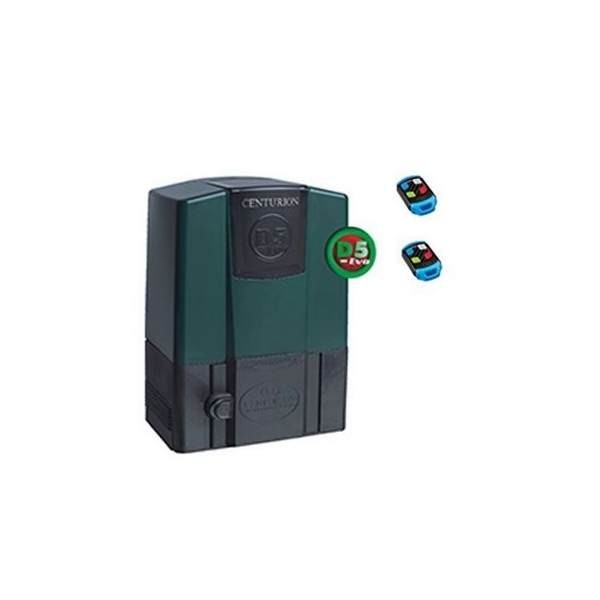

evolution of the tried and tested D5 500kg gate motor for domestic and light-industrial applications. Incorporating battery
backup you can bank on, potent push force and
an intelligent LCD controller for easy setup, not to mention a
plethora of features all tailor-made for the ultimate in security and
convenience, the CENTURION D5-Evo is the apex predator of
gate motors – it simply has no competition and no equal.
MAIN
FEATURES:
· Battery
backup
We pioneered power failure protection in gate motors. So in line with all
our other operators, the D5-Evo sliding gate motor carries on
guarding your entrance even when the lights go out.
· All
important speed
The original D5 made a mark for itself being a quick operator opening the
gate swiftly when you arrive at your entrance. The D5-Evo is
now that little bit faster, opening your average four metre gate in less than
12 seconds, adding even more security and convenience.
· Open
it the way you like it
Rapid opening but a more tempered closing just in case a loved one is in
the way, that’s the sort of sophistication in motor control you can expect from
the D5-Evo. Added to this, you can vary the acceleration and
deceleration of your gate and make it move so smoothly, it will do so for many
years to come.
· Pushes
like a mule
Such a compact package but such a potent push force, it will reliably move
almost any gate weighing up to 500kg for a very long time.
· Wide
awake all the time!
Incorporating the tried and tested DOSS position control system of its
predecessors, the D3 and D5, the CENTURION D5-Evo moves
accurately open and closed, stopping in just the right spot each and
every time. It’s also wide awake to any obstruction that might cross its path,
ensuring safe and sensitive anti-crushing protection.
· It
will turn heads
The D5-Evo takes on a new and more attractive look
compared to the original D5. It’s nice to know that even your trusty gate guard
will turn heads.
· Plug
and play
The LCD-based controller makes child’s play of setting up
the gate. It is literally plug and play – the D5-Evo‘s controller
does all the thinking for you.
· It’s
got it all
What a pleasure to click through an almost endless list of really useful
features – from multiple Modes of Operation, Gate operating parameters, Pillar
Light control with pre-flash, Alarm functions, Positive Close Mode and Real
Time Clock and Calendar to enable time-based features – to helpful diagnostic
feedback. It just stops short of making the coffee!
· Forever
yours
We know that this compact companion will serve you well – year, after year,
after year. So just like all other CENTURION products, your beautiful D5-Evo gate
motor also comes with an industry-leading 24-month warranty for added peace of
mind.
· Alarm
features (a world first)1
Burglars have some nifty techniques to get into your home. Fortunately,
criminals can’t outsmart the CENTURION D5-Evo. An Ambush
Alarm will alert your security company if the opening or closing beams
are interrupted for a predefined, but adjustable, time. Similarly, a Break-in
Alarm will go off if the closing beam outside your house is
interrupted. Their gig is up!
1. Requires gate safety beams to be installed
· Operate
wirelessly, thanks to CENTURION2
Besides its code-hopping technology offering the highest level remote
control security, this multichannel and multi-user CENTURION onboard receiver
allows for a multi-button remote to operate any combination of the system
inputs such as Gate trigger, Pedestrian opening, Holiday Lockout, etc. It
stores up to 500 transmitter buttons, and amongst other access control
features, it provides the ability to selectively add and delete
transmitter buttons saved into its memory.
2. CENTURION code-hopping
· ChronoGuard
timer technology (a world first)
The D5-Evo is so advanced that it no longer needs humans
to look after it. With CENTURION’s ChronoGuard timer technology onboard,
many of the D5-Evo‘s features can be set to operate automatically
or be time-barred at any time you choose. It’s built-in Real Time Clock and
Calendar allows you to set up different exclusions, which can cater for public
holidays, special Time-periods, etc.
D5-EVO
TECHNICAL DATA:
Description |
|
Input
voltage |
90 - 240V
AC +/-10%, 50Hz |
Motor
voltage |
12V DC |
Motor
power supply |
Battery-driven
– 2A charger |
Push force
– rated |
17kgf |
Gate speed
at push force < 5kgf |
22m/min |
Gate speed
at rated push force |
18m/min |
Duty cycle
- mains present |
50% | 150
Max Operations per day |
Duty cycle
- mains present |
20% | 55
Max Operations per day |
Gate mass
- maximum |
500kg |
Onboard
receiver type |
CENTURION
code-hopping,multichannel, 433MHz, capacity - 500 transmitter buttons |
1.

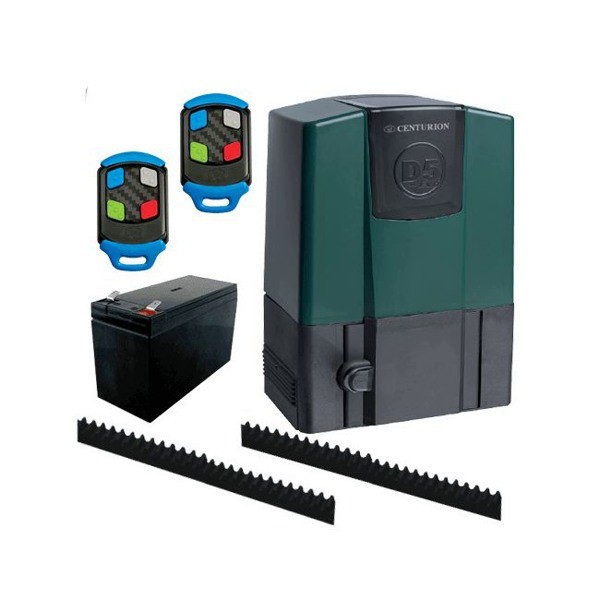

This kit includes the following:
*** It is
highly recommended that the installation of this motor be done by a qualified
installer
