Inhouse product

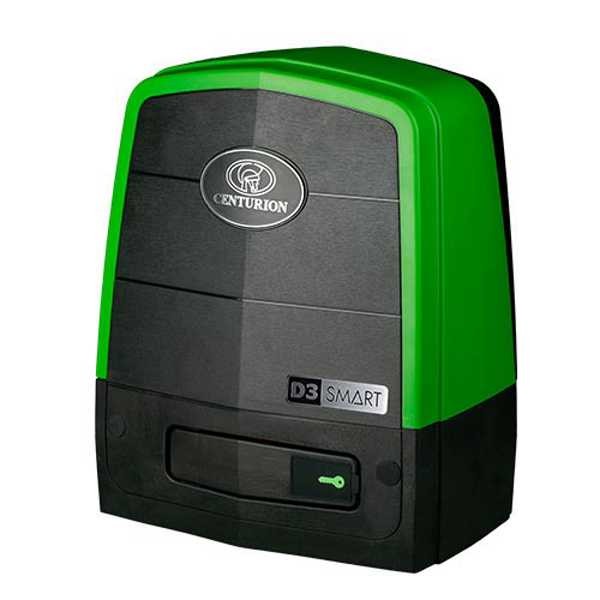

D3 SMART is
packed with advanced – yet intuitive and user-friendly –
functionality to make your life easier. Effortlessly control your
gate with the MyCentsys Remote smartphone app, receive advanced diagnostic
feedback for ultimate peace of mind, and enjoy dependable battery-driven
technology that stands up to power outages.
Installer-friendly,
feature-rich, and budget-conscious, D3 SMART is the smarter choice for your
home.
Here’s
why you’ll love the D3 SMART:
Upgrade your
security without breaking a sweat. Choose the D3 SMART gate motor, the smart
choice for every home.
Technical
Specifications |
D3
SMART |
|
Input
voltage(1) |
110V -
240V AC 50/60Hz (1) |
|
Current
consumption (mains) |
320mA peak |
|
Dx12V
Battery charger current output |
1.8A @
14.3V +/- 5% (28W) |
|
Maximum
number of operations per day |
20 (3,6) |
|
Duty cycle
- Mains present (2,3) |
25% |
|
Motor
power supply |
Battery-driven
(Standard Capacity - 1x12V) |
|
Current
consumption (motor at rated load) |
11A |
This
equipment is compliant with the radiated emissions requirements of EN 55032 /
CISPR 32 for Class B devices, which intends to offer adequate protection to
broadcast services within the residential environment.
Technical
Specifications Continued |
D3
SMART |
|
Fuse
Protection |
Type |
Rating |
|
Main
Control Card |
Serviceable
| 35A |
|
Aux.
Supply |
Resetable
Fuse | 12V 300mA MAX (10sec Pulse) |
|
Charger
(Mains Supply) |
Non-serviceable
| 3A slow-blow |
|
Motor push
force - starting |
18kgf |
|
Motor push
force - rated |
12kgf |
|
Gate mass
- maximum |
300kg |
|
Gate speed
(varies with load) (4) |
Maximum:
Up to 24m/min Rated: Up to 21m/min |
|
Manual
Override |
Lockable
with key release |
|
Operations
whilst in Battery backup mode with 7.2Ah Battery |
Operating
Mode |
|
Up to
24m/min 7kgf | Up to 24m/min 12kgf |
||
Half day
(5,6,8) |
90 | 80 |
|
Full day
(5,6,8) |
70 | 65 |
|
Collision
Sensing |
Electronic |
|
Operating
temperature range |
-15°C to
+50°C |
|
Onboard
receiver type |
Code-hopping
multichannel receiver with selective add and delete |
|
Receiver
code storage capacity |
32 Remotes
(7) |
|
Receiver
frequency |
433.92MHz |
|
Degree of
protection |
IP55 |
|
Mass of
unit packed (with standard kit, but excl. Rack and Battery) |
6.7kg |
|
Packaging
dimensions (with standard kit, but excl. Rack and Battery) |
325mm wide
x 245mm deep x 395mm high |

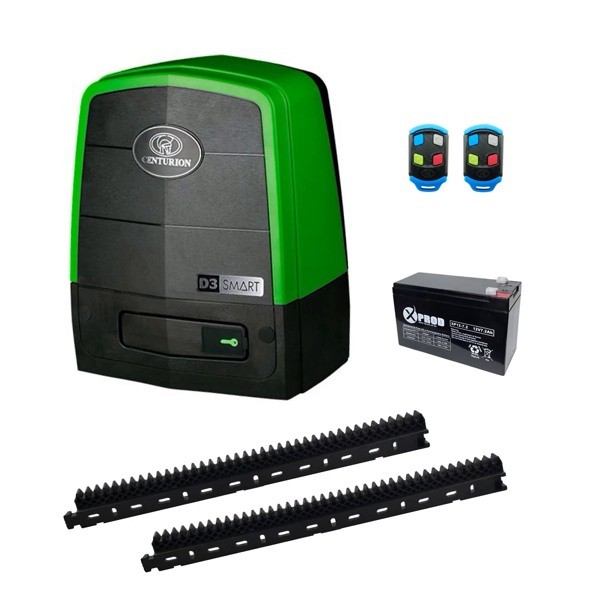

This kit
includes the following:
