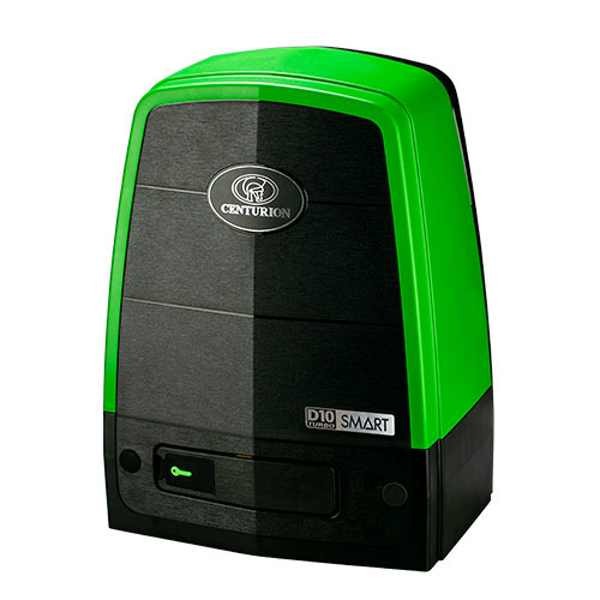

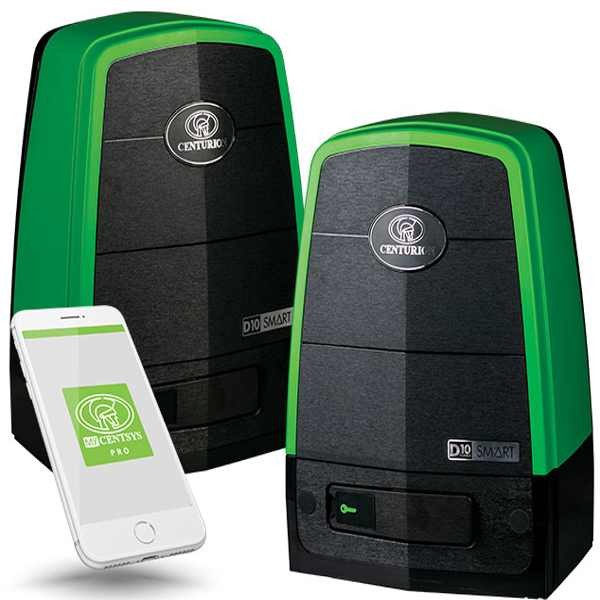

The ultimate
speed machine just got SMARTER. Introducing the all-new, lightning-fast and
intelligent D10 Turbo SMART light-industrial and residential sliding gate
motor, the high-velocity sprinter that combines our most innovative technology
with awe-inspiring speed to deliver a solution that leaves others in its dust.
Main
features:
- Turbo speed for the best
security and convenience
- SMART hardware and SMART
connectivity provide the best experience for installers
- More space and dedicated
accessory tray for complementary solutions such as GSM devices
- Intelligent theft and break-in
protection with an integral vibration sensor and patented theft-deterrent
cage
- Die-cast aluminium gearbox
coupled with a high-torque DC motor built for speed and performance
- Uncompromising security,
uninterrupted convenience with 24V battery backup
- Instant access to advanced,
in-app diagnostics and logs, monitoring system health in real time
- Accurate and safe position
control incorporating reliable Hall Effect technology
|
D10-SMART |
D10
TURBO-SMART |
||
|
Input
voltage |
90V - 240V
AC +/-10% @ 50Hz 1 |
90V - 240V
AC +/-10% @ 50Hz1 |
|
|
Current
consumption (Mains) |
250mA |
250mA |
|
|
Battery
charger current output |
1.8A @
27.4V +/-1% |
1.8A @
27.4V +/-1% |
|
|
Maximum
number of operations per day |
750 3,
6 |
750 3,
6 |
|
|
Duty cycle
- Mains present2, 3 |
45% |
25% |
|
|
Motor
voltage |
24V DC |
24V DC |
|
|
Motor
power supply |
Battery-driven
(Standard Capacity - 2x 12V 7.2Ah) |
Battery-driven
(Standard Capacity - 2x 12V 7.2Ah) |
|
|
Current
consumption (motor at rated load) |
8A |
10A |
|
|
Input /
Output sink currents (Max accessory current draw) |
|||
|
I/O 1-4 |
100mA
(12/24V) |
100mA
(12/24V) |
|
|
I/O 5 and
6 |
3A
(12/24V) 10sec Pulse |
3A
(12/24V) 10sec Pulse |
|
|
Motor push
force - starting |
40Kgf |
24Kgf |
|
|
Motor push
force - rated |
30Kgf |
18kgf |
|
|
Gate mass
- maximum |
1000Kg |
250kg8 |
|
|
Gate
length - maximum |
50m |
50m |
|
|
Gate speed
(varies with load)4 |
Up to
26m/min4 |
Up to
45m/min8 |
|
|
Manual
Override |
Lockable
with key release |
Lockable
with key release |
|
|
Drive
Pinion |
17T
Module 4 |
20T
Module 4 |
|
|
Operations
in standby with 2x 7Ah batteries |
Power
saving (15m/min 15kgf) Normal (26m/min 15kgf) |
Power
saving (15m/min 9kgf) Normal (45m/min 9kgf) |
|
|
Half day2,
5, 6 |
118 | 63 |
189 | 130 |
|
|
Full day2,
5, 6 |
93 | 50 |
150 | 104 |
|
|
Collision
Sensing |
Electronic |
Electronic |
|
|
Operating
temperature range |
-15°C to
+50°C |
-15°C to
+50°C |
|
|
Onboard
receiver type |
Code-hopping
multichannel receiver with selective add and delete |
Code-hopping
multichannel receiver with selective add and delete |
|
|
Receiver
code storage capacity |
1500
Remotes7 |
1500
Remotes7 |
|
|
Receiver
frequency |
433.92MHz |
433.92MHz |
|
|
Degree of
protection |
IP54 |
IP54 |
|
|
Mass of
unit packed (with standard kit, but excl. rack and battery) |
13Kg |
13.5Kg |
|
|
Packaging
dimensions (with standard kit, but excl. rack and battery) |
350mm wide
x 282mm deep x 470mm high |
350mm wide
x 282mm deep x 470mm high |
1.
Can
operate off a solar supply, consult your local dealer for assistance
2.
Based
on 25°C ambient temperature and unit not in direct sunlight
3.
Based
on a motor push force of less than 50% of rated (Starting and Running forces)
4.
Gate
opening and closing speeds can be configured to run slower depending on the
requirements of individual installations
5.
Can
increase battery capacity for longer standby times
6.
Based
on 4m gate, excluding all accessories
7.
Multiple
buttons per remote can be used
8.
Refer
to the table below for D10 TURBO SMΔRT’s recommended gate speed for specified
gates masses
