FEATURES
• The transmitter is wireless and battery-operated saving time and money
• Two year battery life using two AA Alkaline batteries (included)
• Thirty meter operating range that is ideal for almost any entrance gate.
• Fully ant-proof and weather-resistant enclosure for greater reliability
• Transmitter provides audible feedback for easy setup and battery-low indication
• Low power consumption throughout the system for greater efficiency
• Installer Mode with audible feedback makes alignment much easier
• Elegant slimline construction and is only 50mm wide
• Compatible with Intruder-detection Alarms for enhanced perimeter security

SPECIFICATIONS

·       Brand: Centurion

·       Power supply – transmitter: 2 x AA Alkaline Batteries (Supplied)

·       Power supply – receiver: 12 – 24V AC & 12 – 30V DC

·       Receiver power consumption: 30mA @ 12V DC

·       Transmitter battery life Minimum: 2 years

·       Battery low indication: Audible beep

·       Specified operating distance: 30m

·       Alignment: Automatic – 1m² @ 10m (circular area – assumes parallel surface)

·       Output:  contact Fail-safe, N/C and N/O, potential free contact

·       Output:  contact rating 3A @ 30V DC Non-inductive

·       Operating temperature : -15°C to 65°C

·       Operating humidity: 0 – 90% non condensing

·       Degree of protection: IP54

·       Warranty: 24 month carry in Manufacturers warranty

MAINTENANCE
• Ensure that the unit is always clean and free from obstruction.
• Beams should be checked periodically to ensure they are aligned.

WARNING AND LIMITATIONS
• All installation, repair, and service work to this product must be done by a suitably qualified person.
• Product must be used for its intended purpose and should not be modified.
• Only replace with alkaline batteries and do not replace with rechargeable batteries.

WHATS IN THE BOX

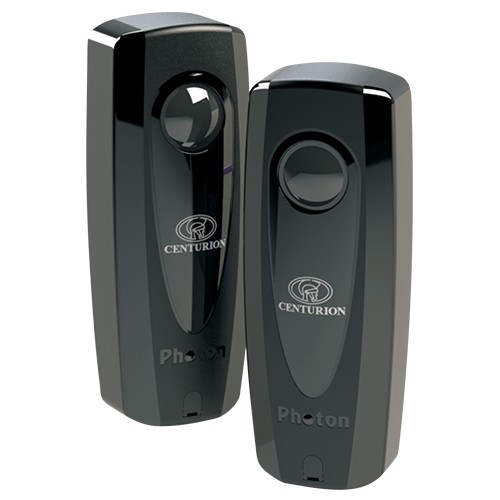

1x Centurion Photon II Infrared Beams

Features

Model

BD09

Product/Packaging Information

Product Weight

0.24 kg

Product Dimensions

5cm(L) x 4cm(W) x 13cm(H)

Shipping Weight

0.24 kg

Shipping Dimensions

8cm(L) x 6cm(W) x 14cm(H)
