Product Description

Brand                                          Generic

Power Source                            Corded Electric, Battery Powered

Compatible Devices                 Smartphone

Communication                         Wireless

Alert Type                                    Audio Only, Motion Only

 2.4” TFT screen display

Simple and fashion desig, pure white case matches any decor

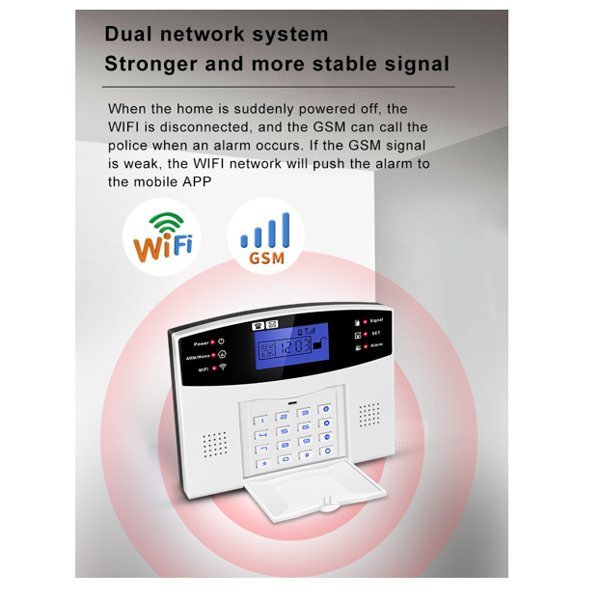

Wi-Fi & GSM network, easy to install in minutes

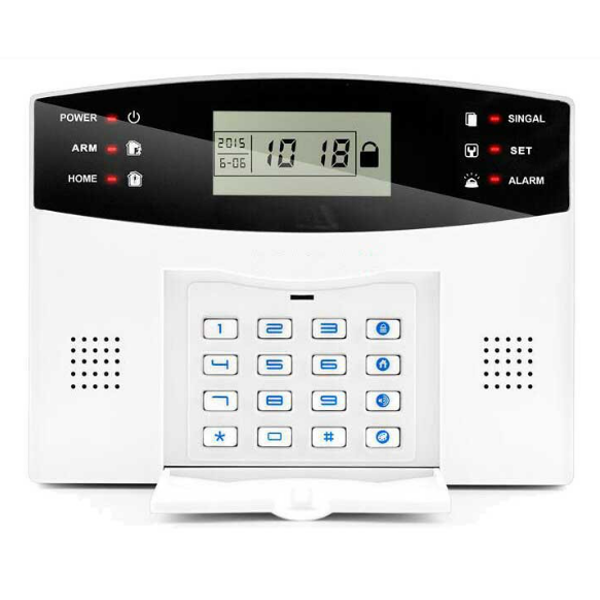

Easy operation with APP/ remote control / panel keypad

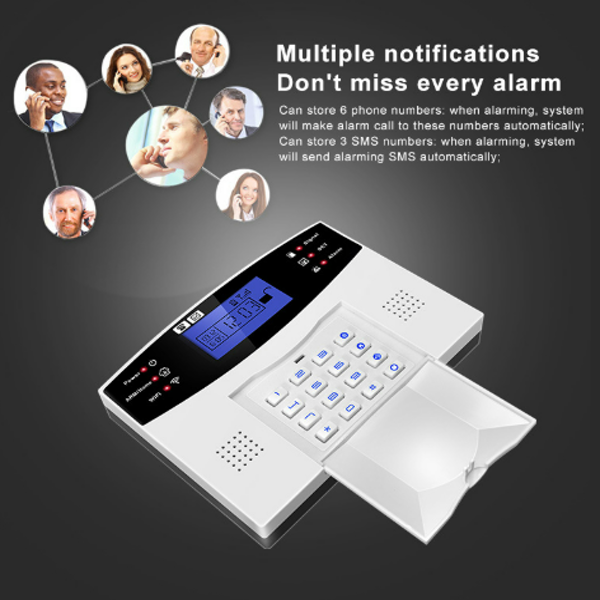

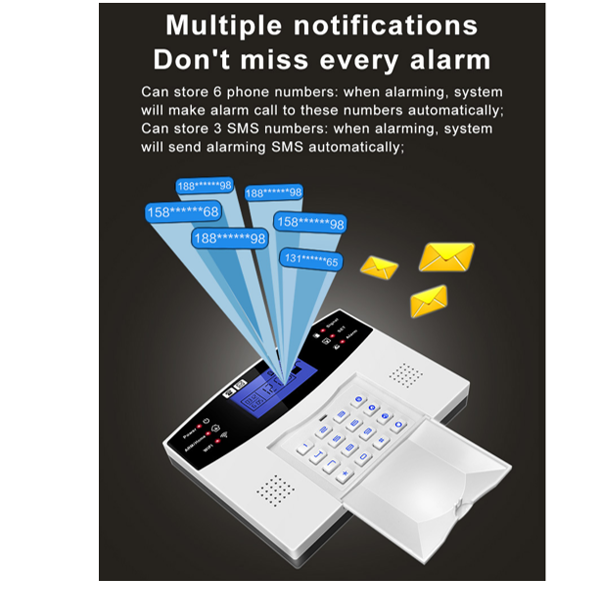

1: Preset 6 groups of message calls, the host automatically sends message alarm. Built-in lithium rechargeable battery pack, power off alarm function. Instant, delayed, 24-hour programming functions. Timing arm and disarm functions.

2: Additional functions: the system can be used as a mobile plane,which can dial calls, check calls, calls recharge and other functions through the host's keyboard. Several arming modes: Remote instant arming, outdoor host delay arming, indoor host stay arming, designated timing arming, remote phone arming.

3: Learn code though remote control and 5 wireless remote control at most can be learned. Query: the host automatically records all information about the alarming events. Battery automatically sends message prompt in low power. AC power down and AC recovery message prompt.

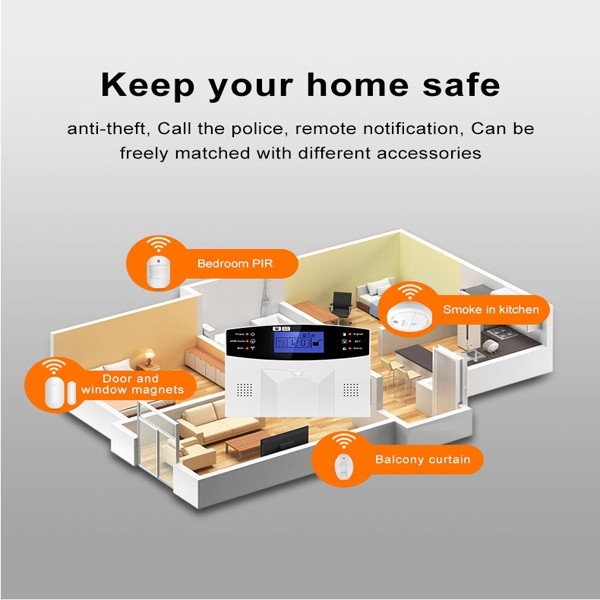

4: Built-in wireless transmitter module can be linked to wireless alarm and intelligent household system (optional). The use of advanced mobile communication technology can achieve dial-up alarm and SMS alarm.

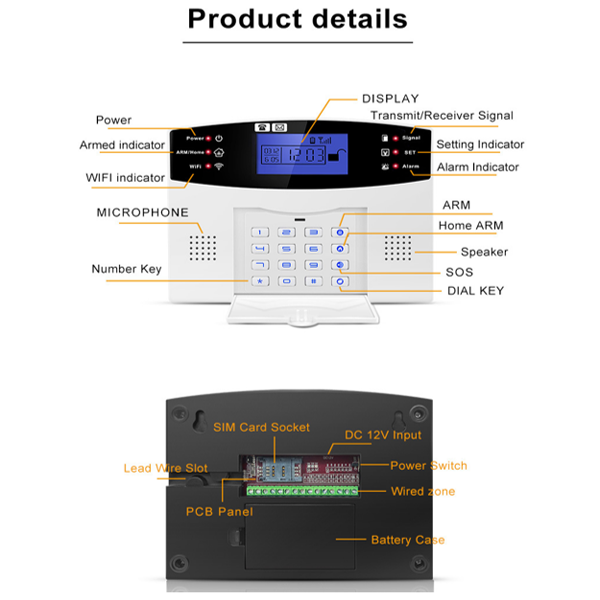

Alarm Host Installation:

· Connect the power cable and the external siren to the alarm host, insert the SIM card into the card slot;

· Provide the drilling template card, screwdriver and screws, screwed it on the location hole, hang the alarm host on the screw.

Alarm Host Features:

· Built- in rechargeable battery in the alarm host, it can Standby 8 hours when power is failed;

· It can set the password on the keypad, then input the password and operation, which could prevent operation from the children and strangers;

· According to the user's schedule, set the timing of arm and disarm, by set once, valid for life;

· After inserted the sim card, it can be call and answer operated as is a telephone;

· It will have the SMS alerts while you arm/disarm, you can see the status of the alarm in time;

· The remote control can be operated by indoor, to remote mobile phone and sms can be operated by outdoor.

PIR Installation:

· The item equipped with holders and screws, put it directly on the platform after installed the holders, also installed holder to wall or any place using by screw.

PIR Features:

· Support home arm, it means the PIR detector can not trigger the host to arm in arm status, while master is at home;T

· the detection range with 12m ,110°;

· it will transmitting signal in every 5 seconds, it will triggered alarm immediately when detected trigged.

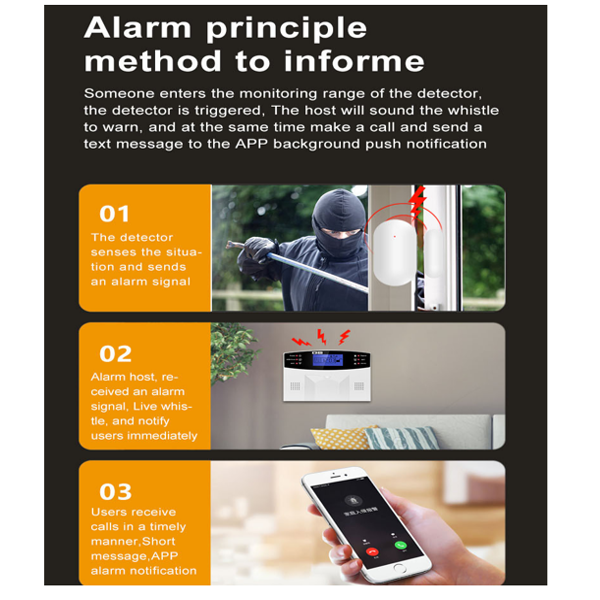

Motion detectors 3 steps:

· Detect suspicious movements.

· The sensor automatic response to the alarm system.

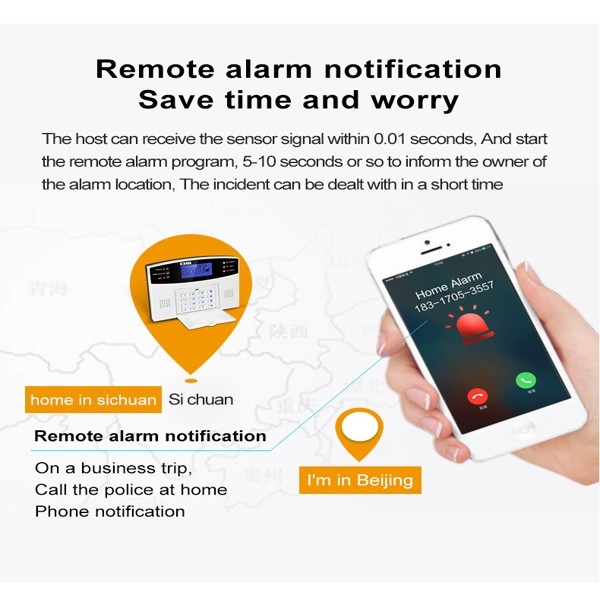

· Automatically dial & Real-time message Call/push to your phone.

Door sensor:

The maximum distance is 20MM between the wireless transmitter and the magnetic block, it will be alarm or invalid over this distance.

How to install the red mini siren?

Insert the two siren cable to the hole, connect red cable to BZ+ and connect black cable to BZ-.

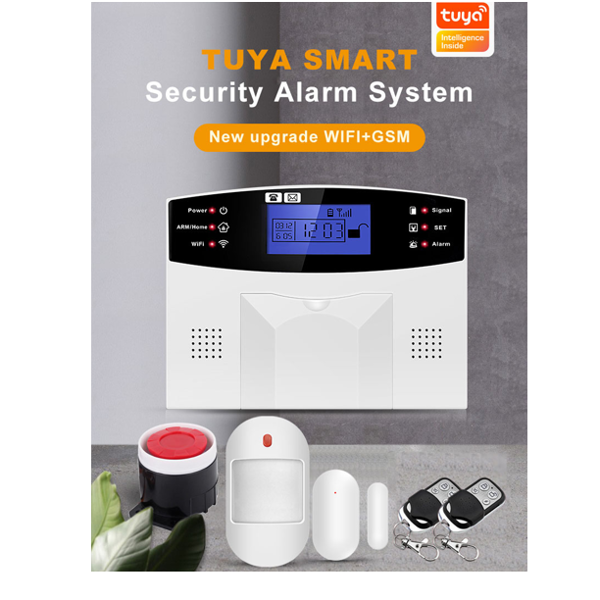

Package Includes:

1* Main Panel,

2* Remote Controllers,

1* Motion Sensors,

1* Door/Window Sensors,

1* Power Adapter,

1* Siren Alarm,

1* User Manual
