CEN PHOTONSM0V0

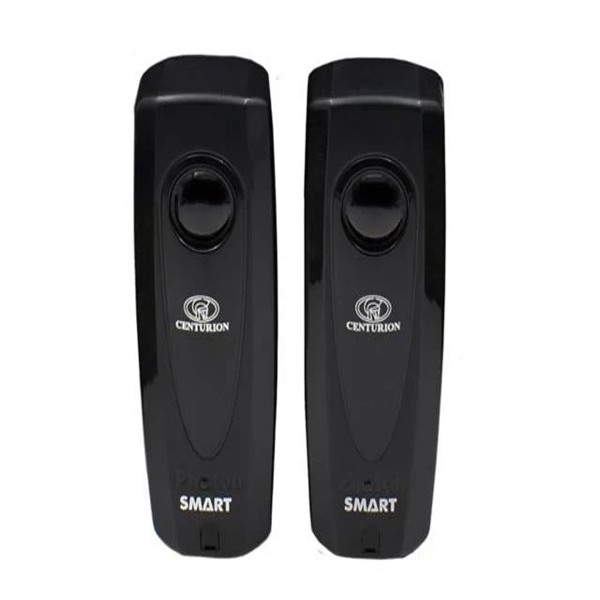

Centurion Photon Smart Fully Wireless IR Beam Set, Max Distance:30meters, Alignment Between Beams²: Automatic -1M@10M, 2XAA Alkaline Batteries Supplied For Each Transmitter & Receiver, IP54

Safety has never been so quick and easy – thanks to wireless technology! Introducing CENTURION’s photons – infrared gate safety beams with wireless technology with a wireless transmitter. Photon II makes short work of achieving a safe automation system for even the most challenging of installations. With a wireless transmitter there’s no need to tunnel under the driveway. Simply align, attach and you’re away!

MAIN FEATURES:

• The transmitter is wireless and battery-operated saving time and money.
• Two-year battery life using two AA Alkaline batteries (included).
• Thirty-metre operating range – ideal for almost any entrance gate.
• Fully ant-proof and weather-resistant enclosure for greater reliability.
• Transmitter provides audible feedback for easy setup and battery-low indication.
• Low power consumption throughout the system for greater efficiency.
• Installer Mode with audible feedback makes alignment a dream.
• Elegant slimline construction – only 50mm wide.
• Compatible with Intruder-detection Alarms for enhanced perimeter security3.

DESCRIPTION
Power Supply Transmitter	2 x AA Alkaline Batteries (Supplied) Only replace with alkaline batteries; do not use rechargeable batteries with this product
Receiver	12 – 24V AC 12 – 30V DC
Receiver Power Consumption	30mA @ 12V DC
Transmitter Battery Life	Minimum 2 years
Battery Low Indication	Audible Beep
Specified Operating Distance	30m
Alignment	Automatic – 1m² @ 10m (circular area – assumes parallel surface)
Output Contact	Fail-safe, N/C and N/O, potential free contact
Output Contact Rating	3A @ 30V DC Non-inductive
Operating Temperature	-15°C – +65°C
Operating Humidity	0 – 90° Non-condensing
Housing Material	0 – 90° Non-condensing
Degree of Protection	IP54
